TYPE ：E01A 042-07

Precise and easy to operate integrated pumps

E01  digital dosing pump      Maximum flow 700 ml/min Maximum accuracy 0.2%

1.Servo-driven precision metering

High-speed pulse control with resolutions of up to 18 K enables the highest level of flow accuracy, reaching a maximum of 0.2%.
The use of a step motor and microprocessor to flexibly and precisely control the pump's action posture replaces traditional metering pumps with variable frequency control or adjustable stroke control, making it more accurate and stable.
The precise metering of fluids represents the most advanced technology in the field of fluid dosing, which involves a number of scientific fields such as engineering structures, fluid mechanics, mathematics and electronics. The Wearable E01A 042 electric differential pump perfectly combines the advantages of these fields with a user-friendly interface and an output flow rate of up to 700 ml/min.

2.integrated operating system

Fully modular integrated design for easy installation and convenient usage,

3.Multiple function modes

In the working mode menu, a variety of working modes can be selected, such as: manual mode, concentration mode, pulse dosing, pulse control, batch mode, voltage control, current control, intermittent operation, weekly scheduling, external start-stop, automatic air bleeding and other working modes.

4.Abnormal operation alarm

You can view alarms and warnings in the "Alarm" main menu. The warnings and alarms will be listed in chronological order along with their occurrence dates, times, and reasons. If the list is full, the earliest entry will be overwritten.

5.embedded multilingualism

The E01 digital dosing pump supports operations in multiple languages such as English and Russian. Enter the setting interface and you can select the language in the language column.

6.Multiple external control interfaces

The main body is equipped with multiple interfaces, including:
A 485 communication interface
An external signal start/stop control interface
A voltage/current analog signal control interface
A power input interface
LDC sensor interface
Output signal interface

7.Slow Speed Mode

The digital dosing pump is capable of delivering liquids with various viscosities, ranging from 0 to 1500 CP.
When handling high-viscosity liquids, the Slow Speed Mode can be activated. Once the "Slow Speed Mode" function is enabled, the digital dosing pump will reduce its suction speed, ensuring efficient and reliable delivery of high-viscosity fluids.

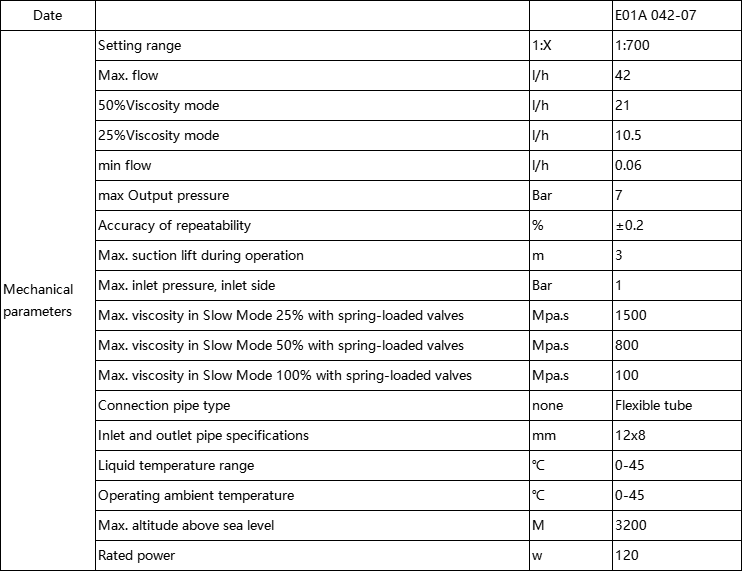

Performance and configuration notes
